Intelligent closed-loop wire feeding
High-frequency back electromotive force control ensures precise and consistent wire feeding even under varying load conditions, critical for maintaining weld quality in submerged arc applications.
Full-Digital Submerged Arc Welding Machine
SA Series
The Megmeet SA Series delivers industrial-grade submerged arc welding with output up to 1250A at 100% duty cycle. Featuring CC/CV modes, intelligent closed-loop wire feeding, and stable performance at 100m cable extension, it is built for the most demanding heavy fabrication environments.
Up to 1250A output
Available in 1000A and 1250A variants, both rated at 100% duty cycle for uninterrupted high-deposition welding on heavy steel structures.
CC/CV welding modes
Constant current and constant voltage welding modes provide flexibility for different joint configurations and wire types in submerged arc applications.
100m cable stability
Maintains stable welding performance with cable extended to 100 meters, essential for large-scale shipbuilding, bridge, and structural steel fabrication.
Features & Enhancements

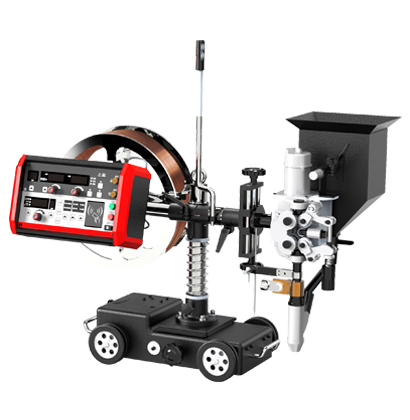

SAW tractor system
Paired with a dedicated SAW tractor featuring dual-drive DC motor, travel speed of 0.2–1.8 m/min, and support for 3.2–6mm wire diameters with 25kg spools for extended continuous operation.
Smart management features
U-disk firmware upgrades, RFID card linking for welder management, and optional SMARC IoT integration for real-time monitoring and production data collection.
Specifications & parameters
Rated output current100–1000A
Rated output voltage20–44V
Input capacity52.5kVA
No-load voltage78V
Duty cycle100%
Power factor≥0.92
Efficiency≥90%
Dimensions646×386×823mm
Weight84kg
