Ultra-large Format Sheet Metal Laser Cutting Machine
Experience superior speed, safety, and cleanliness with the Bodor H series for effortless large format metal cutting
The 12m+N modular bed of the Bodor H series features a completely separated worktable and bed design. This enables you to cut ultra-large sheets of 12m, 16m, 20m or longer, with high efficiency and precision.
The H series has a triangular ultra-high-pressure honeycomb design for the aluminum crossbeam, which combines light weight, strong rigidity, fast response, and low deformation. The crossbeam also has a protective cover for safety and stability.
The protective cover covering the crossbeam makes operation and the equipment safe. Thanks to the lightweight design, its stable inside mechanical structure guarantees speed in the mean time. *Non-standard versions with crossbeams of 4/5/6 meters do not have the protective cover.

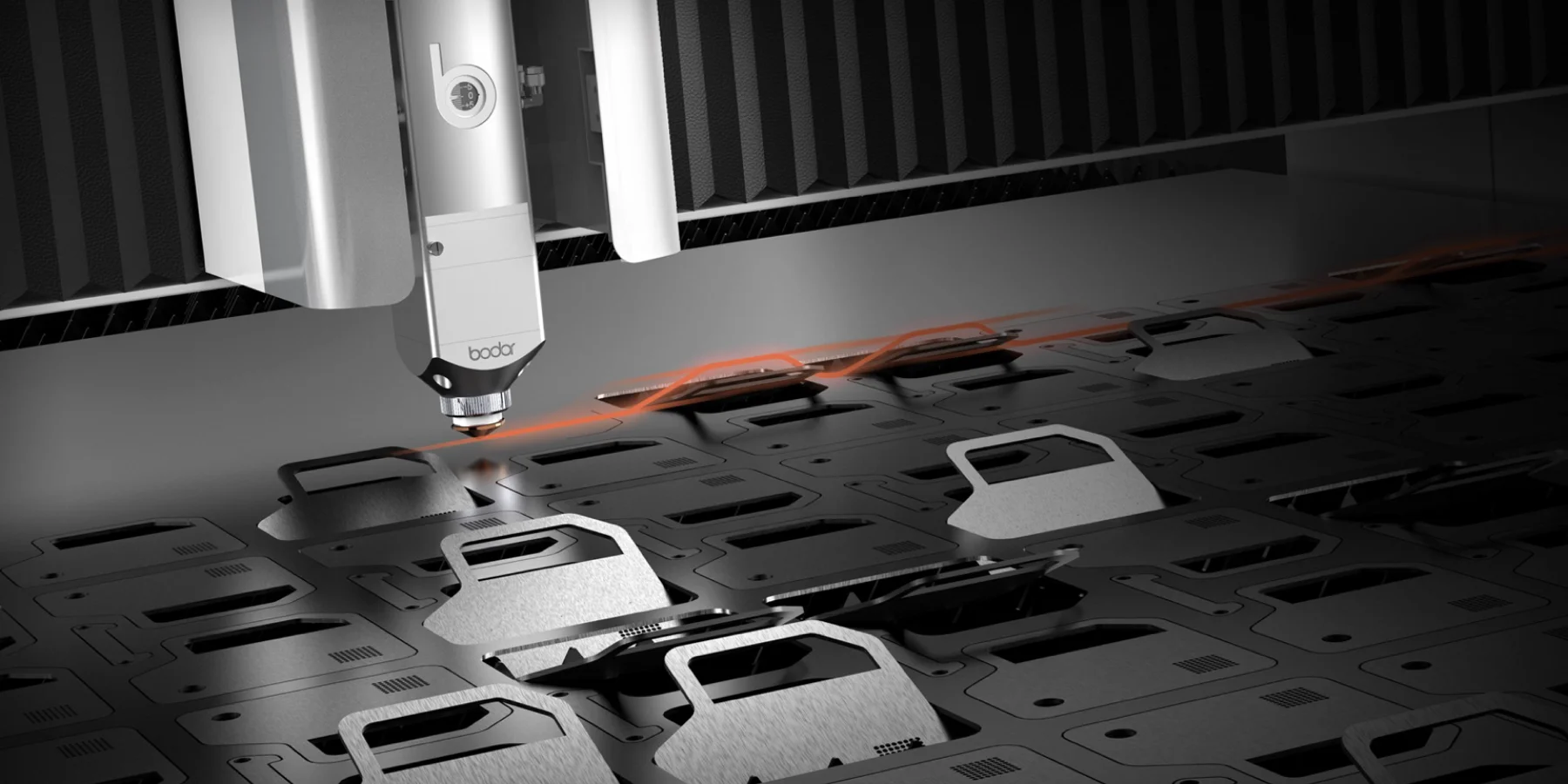

BodorGenius, Bodor's intelligent laser head, uses sensors and algorithms to detect potential obstacles like tilting parts and automatically avoids a potential collision. It largely ensures the stability as well as operating efficiency in the cutting process.
The bevel cutting option of H series enables the production of high-precision bevel cuts in +/- 45 degrees, optimizing subsequent assembly procedures and welding performance while lowering production costs. (Available cuts include A-cut bevel, V-cut bevel, Top Y-cut bevel, X-cut bevel, and K-cut bevel).
The technology offers rapid, precise piercing with reduced amount of time. It features efficiency monitored processes, focus adjustment, and integration with BodorGenius. This enables quick piercing in sync with the cutting head's movement, optimizing operations for medium-thick plates without extra time or motion.
One-second edge finding ensures rapid material positioning and focus calibration. With an optical camera, the system automatically identifies the material’s position and locates its origin and angular offset within 1 second. This visual and algorithmic innovation simplifies operating procedures and completes cutting, recognition, and focus compensation in one go, largely reducing working time.

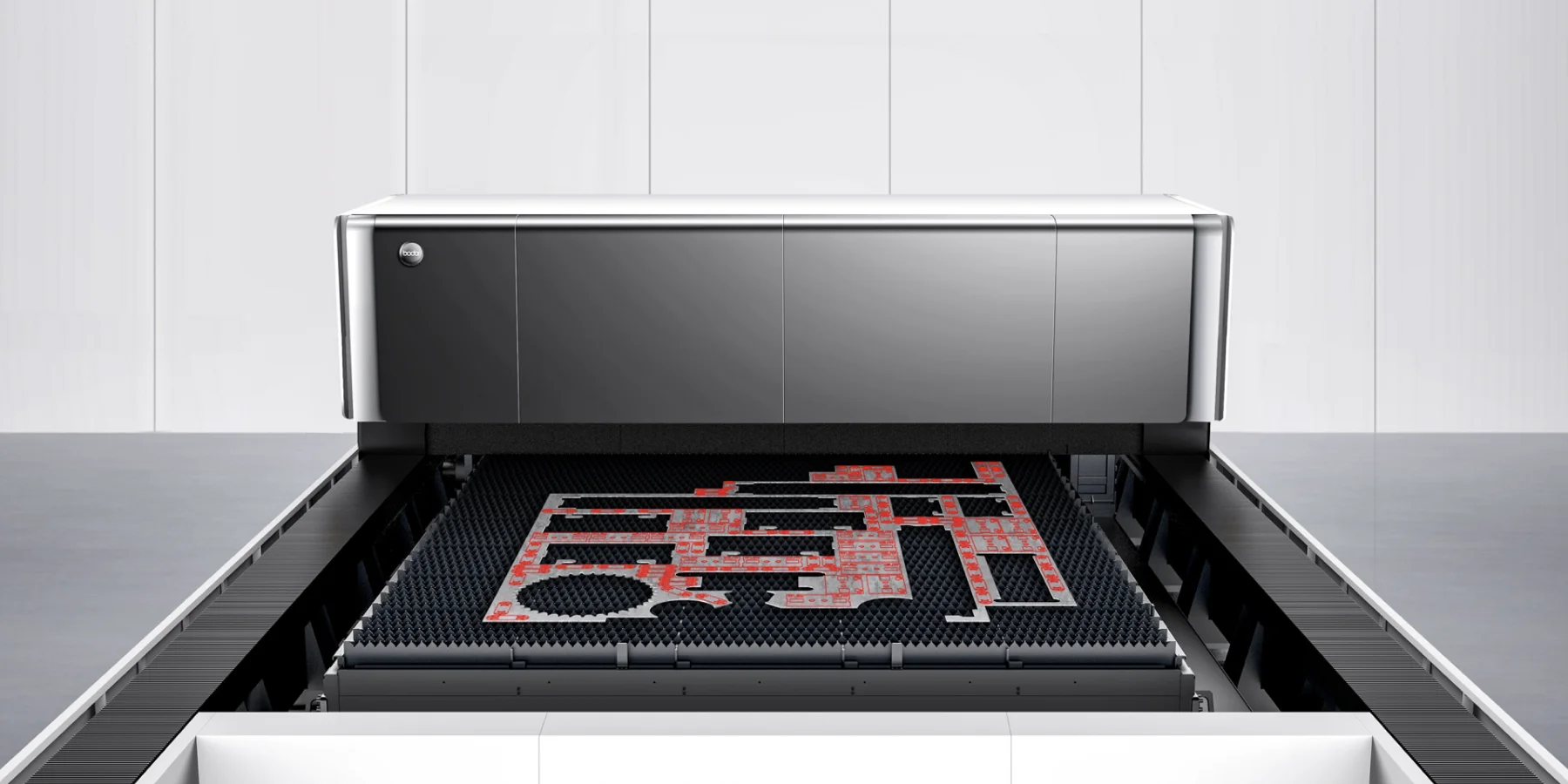

To achieve maximum material utilization, all you need to do is uploading cutting shapes to the control system via your mobile phone. H series is able to automatically finish positioning as well as nesting. The higher the percentage of utilization, the more economical the process. Enjoy the benefits of significantly increased cost savings.
To stabilize laser beam focal point during the cutting process, this function counteracts the adverse effects of overheating by adjusting time and temperature. It is especially applicable to cutting thick sheet metal.
Based on the air pressure deviation feedback from the system, H series automatically adjusts pressure without manual intervention. The air pressure set in the software corresponds directly to the actual cutting air pressure in use, further ensuring operating stability.

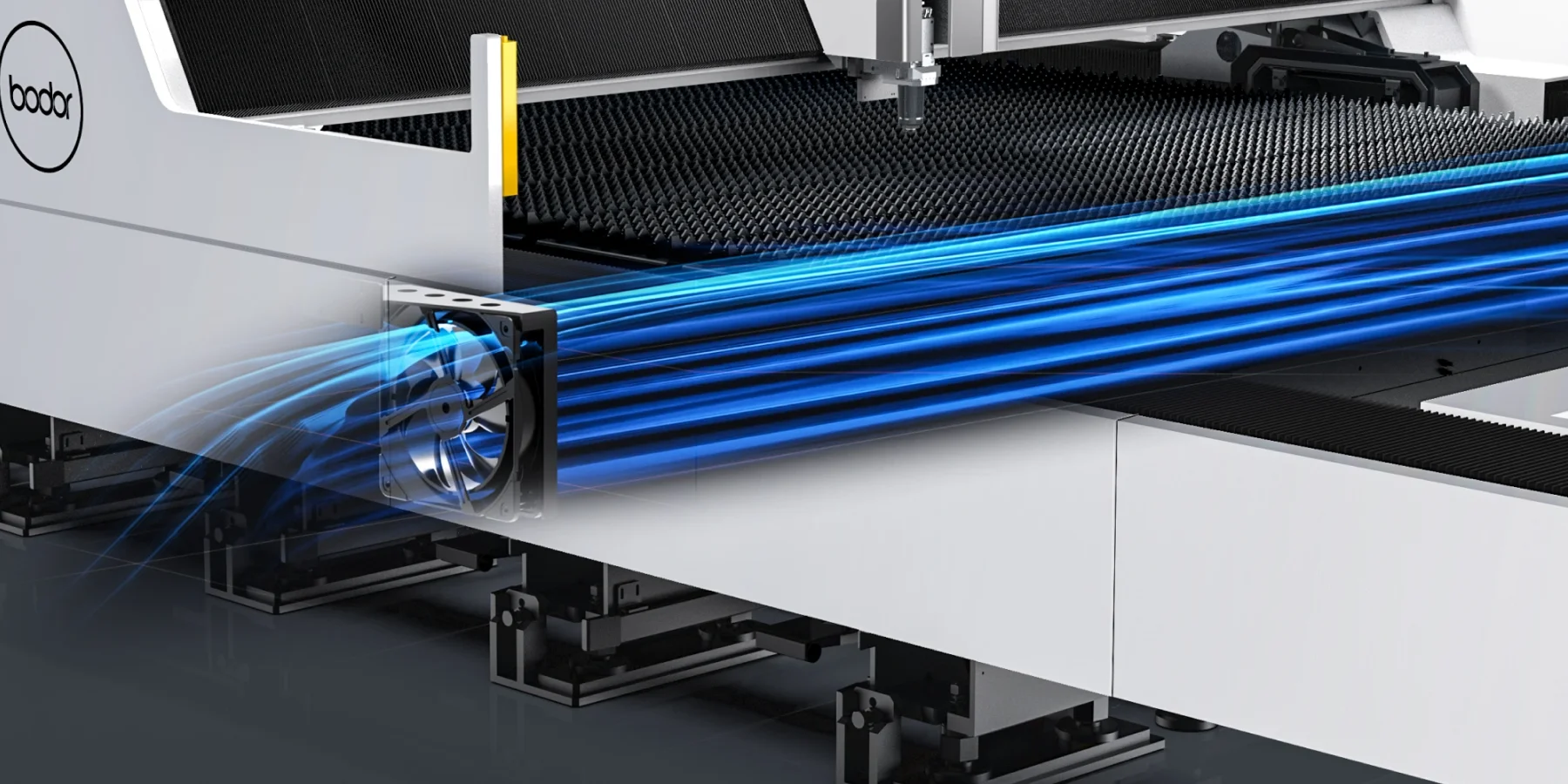

The function significantly improves the cleanliness of the cutting process. It works by dividing the cutting area into multiple partitions and using a combination of internal and external fans to create a powerful airflow that effectively removes fumes and dusts from the cutting zone in real time.
The nesting software for the Bodor H series has strong compatibility with Tekla, streamlining your workflow by effortlessly reading material specifications from Tekla files. It simplifies the cutting process with smart material utilization, ensuring maximum efficiency and less waste.
