Ensure safety, maximize material usage, and streamline operations for superior productivity and cost savings.
The G series allows for the use of an existing cement base or a Bodor-provided base, significantly reducing foundation costs and enabling quick setup by utilizing existing plasma cutter foundations.

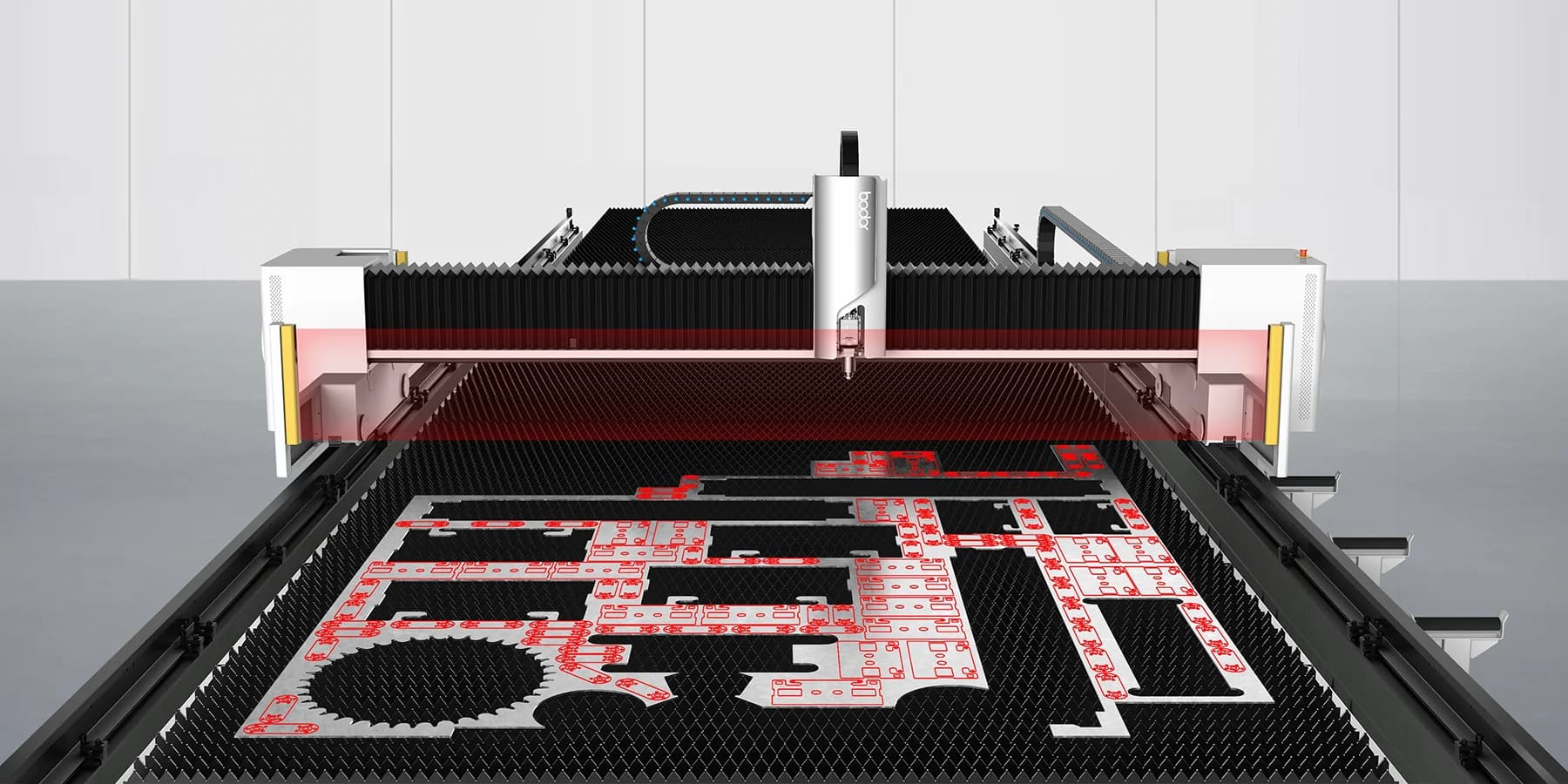

The G series incorporates safety gratings at both ends of the cross beam. The system instantly triggers an emergency stop if an object is detected within the cross beam's safety zone, thereby safeguarding both personnel and equipment.
The G series enhances cutting efficiency with features like 12kW-60kW high power options, faster cutting speed and narrower kerf compared to plasma and flame cutters, significantly boosting productivity and reducing material waste.

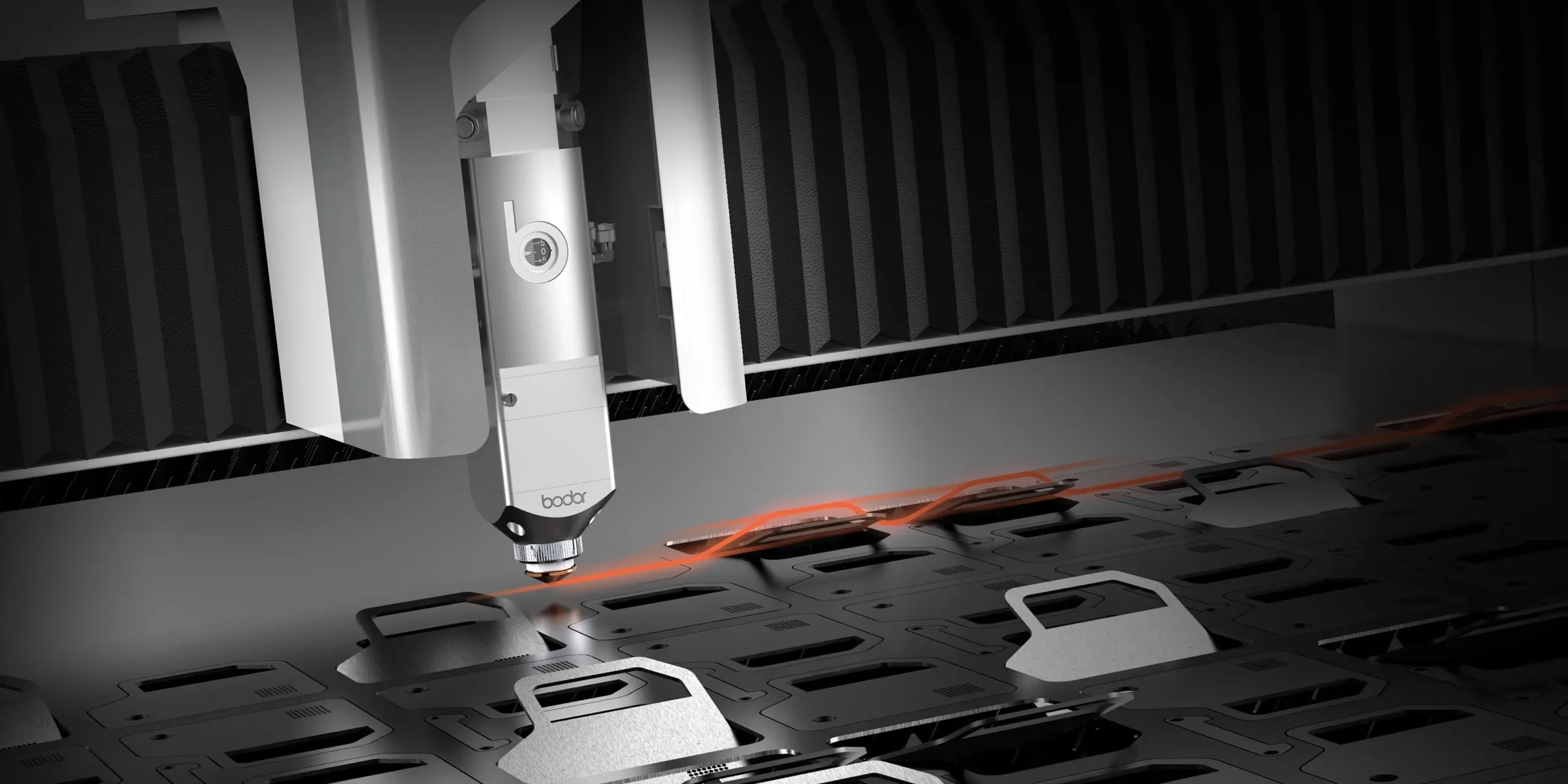

BodorGenius, Bodor's intelligent laser head, uses sensors and algorithms to detect potential obstacles like tilting parts and automatically avoids a potential collision. It largely ensures the stability as well as operating efficiency in the cutting process.

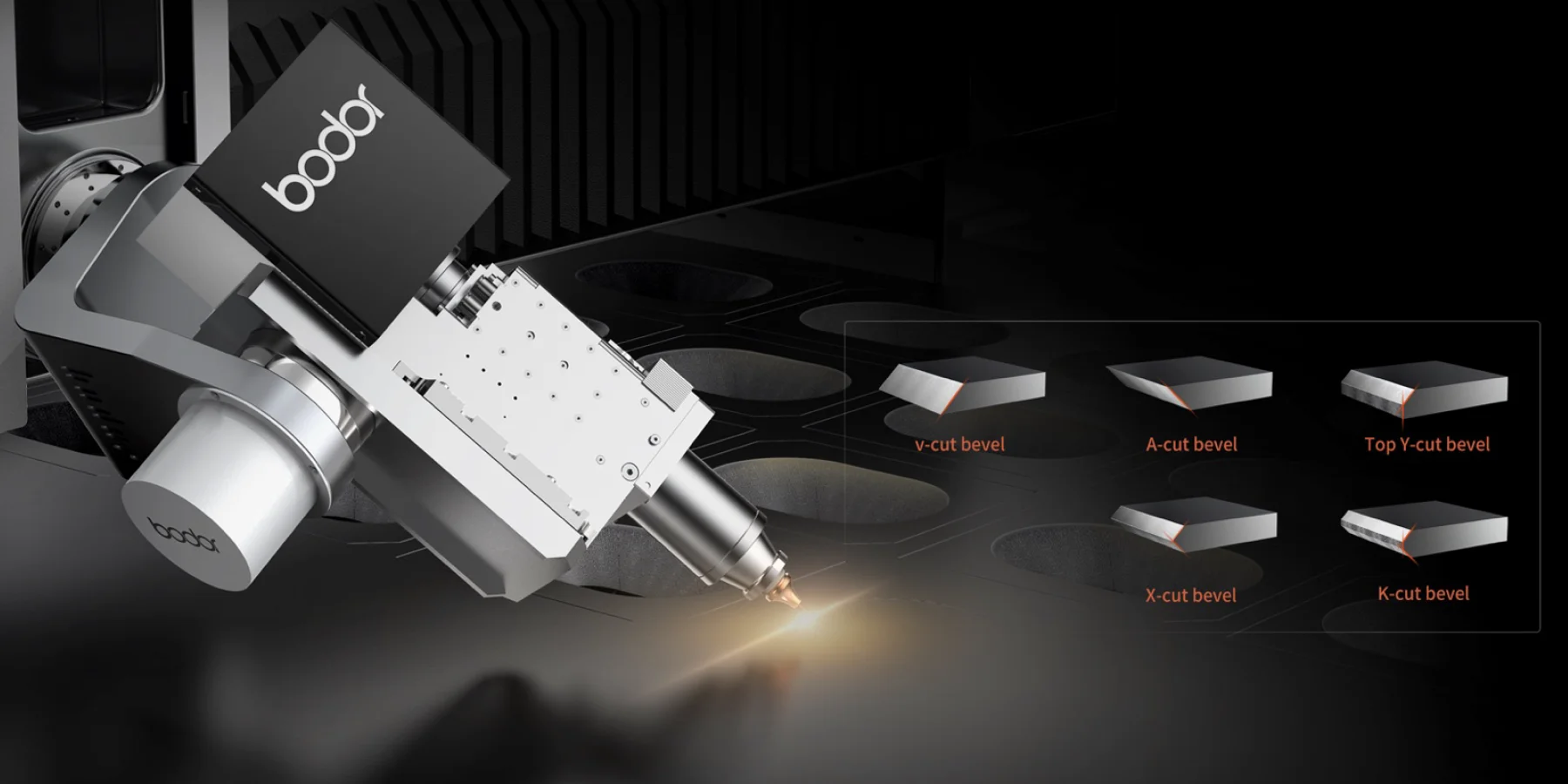

The bevel cutting option of G series enables the production of high-precision bevel cuts in +/- 45 degrees, optimizing subsequent assembly procedures and welding performance while lowering production costs. (Available cuts include A-cut bevel, V-cut bevel, Top Y-cut bevel, X-cut bevel, and K-cut bevel).

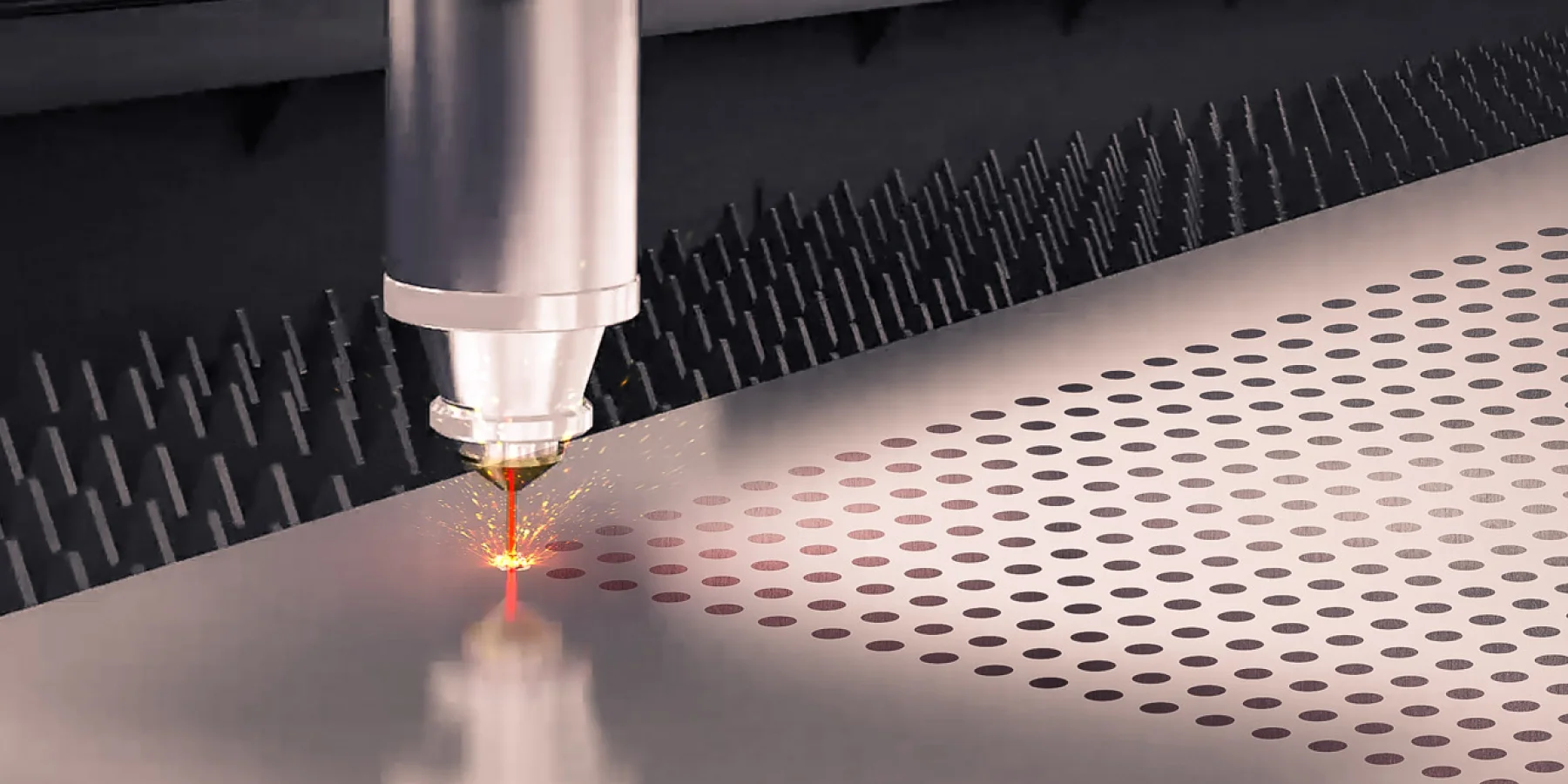

The technology offers rapid, precise piercing with reduced amount of time. It features efficiency monitored processes, focus adjustment, and integration with BodorGenius. This enables quick piercing in sync with the cutting head's movement, optimizing operations for medium-thick plates without extra time or motion.
To achieve maximum material utilization, all you need to do is uploading pictures of the remnant to the control system with your mobile phone. G series is able to automatically finish positioning as well as nesting. The higher the percentage of utilization, the more economical the process. Enjoy the benefits of significantly increased cost savings.

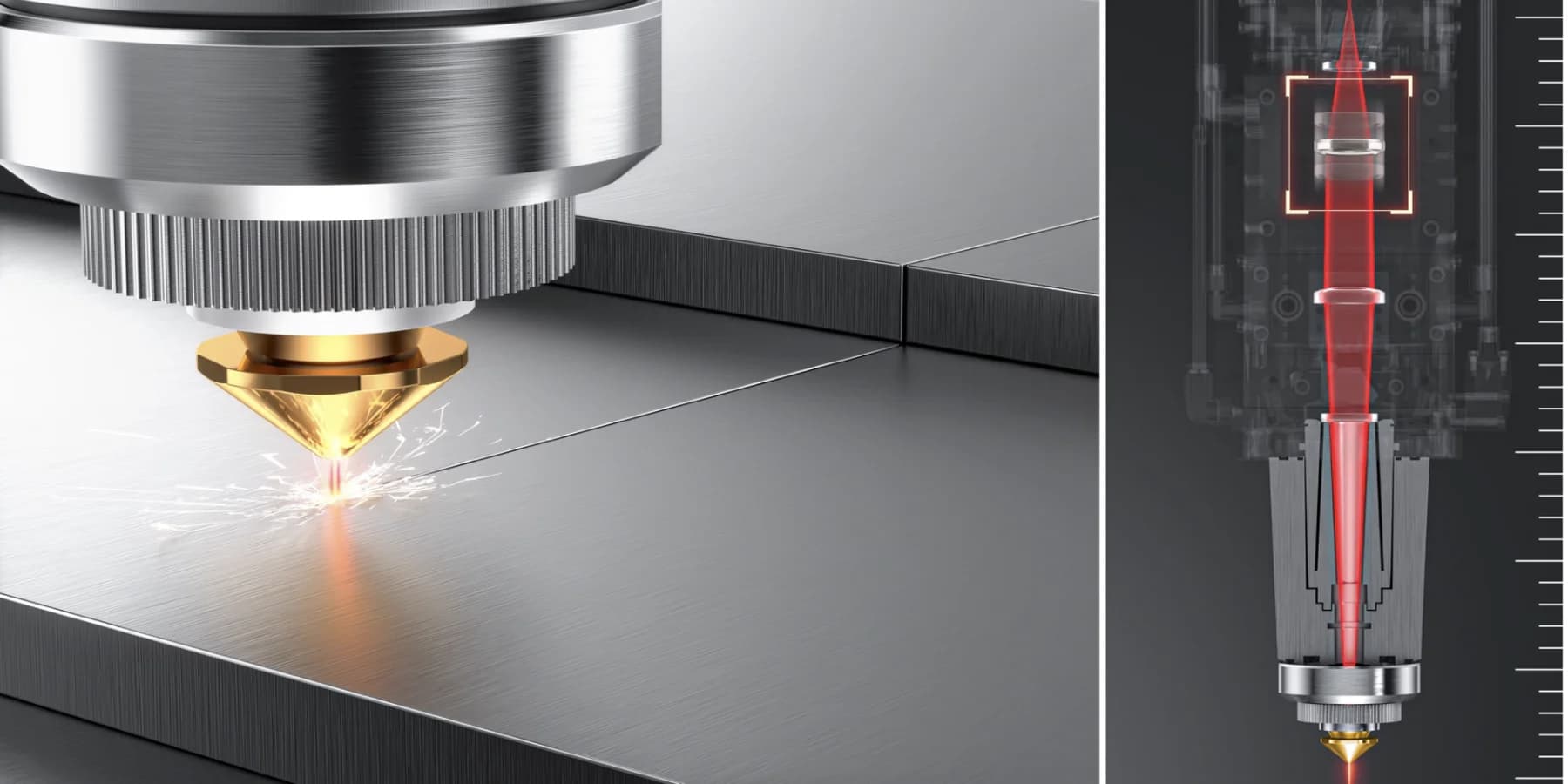

To stabilize laser beam focal point during the cutting process, this function counteracts the adverse effects of overheating by adjusting time and temperature. It is especially applicable to cutting thick sheet metal.
Based on the air pressure deviation feedback from the system, G series automatically adjusts pressure without manual intervention. The air pressure set in the software corresponds directly to the actual cutting air pressure in use, further ensuring operating stability.
The nesting software for the Bodor G series has strong compatibility with Tekla, streamlining your workflow by effortlessly reading material specifications from Tekla files. It simplifies the cutting process with smart material utilization, ensuring maximum efficiency and less waste.
12500mm*3200mm (G3000-12) 16500mm*3200mm (G3000-16) 20500mm*3200mm (G3000-20) 24500mm*3200mm (G3000-24) 28500mm*3200mm (G3000-28)
60kW / 30kW / 24kW / 12kW (G3000-12 to G3000-24) 30kW / 24kW / 12kW (G3000-28)
±0.1mm/m
±0.1mm/m
50m/min
